Details ： In field of vehicle, communication and industry, it needs a lot of large output current inductors ,but winding type inductor can not be satisfied. The planar inductor made by flat enameled wire is the best choice.
The planar inductor can not only pass through large current, but also reduce the skin effect of high frequency at work.And through the special designed structure, it can reduce the thermal resistance and provide the best heat dissipation performance;


application area：
*  car,  electric car and HEV, vehicle power system
* charging equipment （1-10Kw）of electric car and HEV
*  distributed power system( for communications , industrial and etc.)
*  photovoltaic system,  wind power generation system

FEELUX can customize various planar inductors according to customer's requirement.

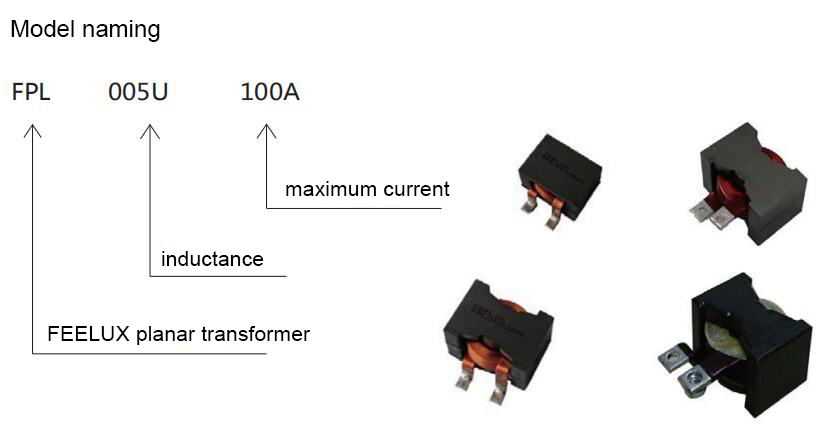

model	inductance	maximum output current	DC Resistance	optimum operating frequency	size（mm）
FPL020U10A	5-20uH	10A	2.0m Ω	50-200KHZ	21x21x13
FPL010U30A	3-10uH	30A	1.8m Ω	50-200KHZ	27x27x18
FPL010U60A	3-10uH	60A	0.45mΩ	50-200KHZ	33x35x21
FPL005U100A	1-5uH	100A	0.35mΩ	50-200KHZ	41x40x22
