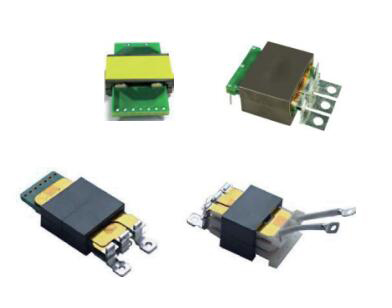

vehicle planar transformer
Details
：
Magnetic components which has high performance, small volume and stability is tend to used in car, communications and industrial fields ; The planar transformer can not only output large current, but also can reduce thermal resistance and provide the best heat dissipation performance through flat and professional thermal design. The work efficiency of planar transformer is much higher than that of general winding type transformer.
Application Area：
* car, electric car and HEV, vehicle power system
* Charge equipment （1-10Kw）of electric car and HEV
* distributed power system( for communications , industrial and etc.)
* photovoltaic system, wind power generation system FEELUX can customize various planar transformers according to customer's requirement.
Application Area：
* car, electric car and HEV, vehicle power system
* Charge equipment （1-10Kw）of electric car and HEV
* distributed power system( for communications , industrial and etc.)
* photovoltaic system, wind power generation system FEELUX can customize various planar transformers according to customer's requirement.
|

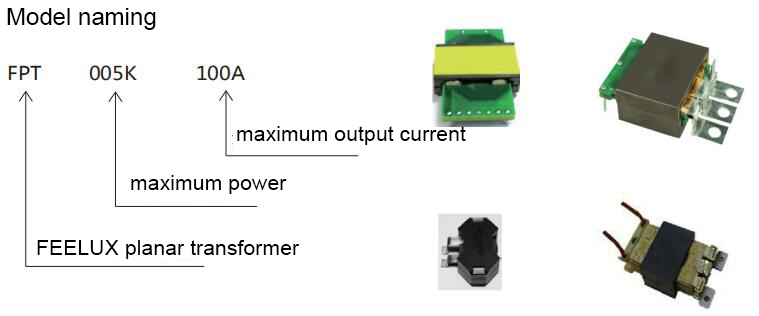

model |
range of power |
topology structure |
optimum operating frequency |
maximum output current |
size（mm） |
|
FPT002K10A |
100W-200W |
反激、正激、半桥 |
50-200KHZ |
10A |
50x42x16 |
|
FPT007K40A |
300W-700W |
半桥、全桥、全桥ZVS、推挽 |
50-200KHZ |
40A |
60x45x21 |
|
FPT010K80A |
500W-1000W |
半桥、全桥、全桥ZVS、推挽 |
50-200KHZ |
80A |
96x42.5x15.8 |
|
FPT020K100A |
1000W-2000W |
半桥、全桥、全桥ZVS、推挽 |
50-200KHZ |
100A |
76x43x26 |
|
FPT050K200A |
2000W-5000W |
半桥、全桥、全桥ZVS、推挽 |
50-200KHZ |
200A |
110x65.8x26 |
